Shower Mixer Valve Guide
BathSelect offers shower mixer valves in several control configurations, including thermostatic and digital options. The appropriate valve depends on the number of shower functions, intended water delivery, installation method and compatibility with the plumbing system.
Choosing a Shower Mixer Valve
When selecting a mixer valve, consider durability, ease of use, compatibility with the existing or planned plumbing, and the overall bathroom design. The valve configuration also needs to correspond with the number and type of water outlets used in the shower.
Match the Valve to the Outlets
A simple shower head may need only a single-function mixer, while rainfall, waterfall, mist, handheld and body-spray configurations require additional function control.
Confirm Compatibility
Valve type, inlet arrangement and outlet assignments should match the plumbing design before the wall is closed.
Coordinate the Visible Trim
Mixer controls are available in different finishes and styles so the visible trim can coordinate with the rest of the bathroom.

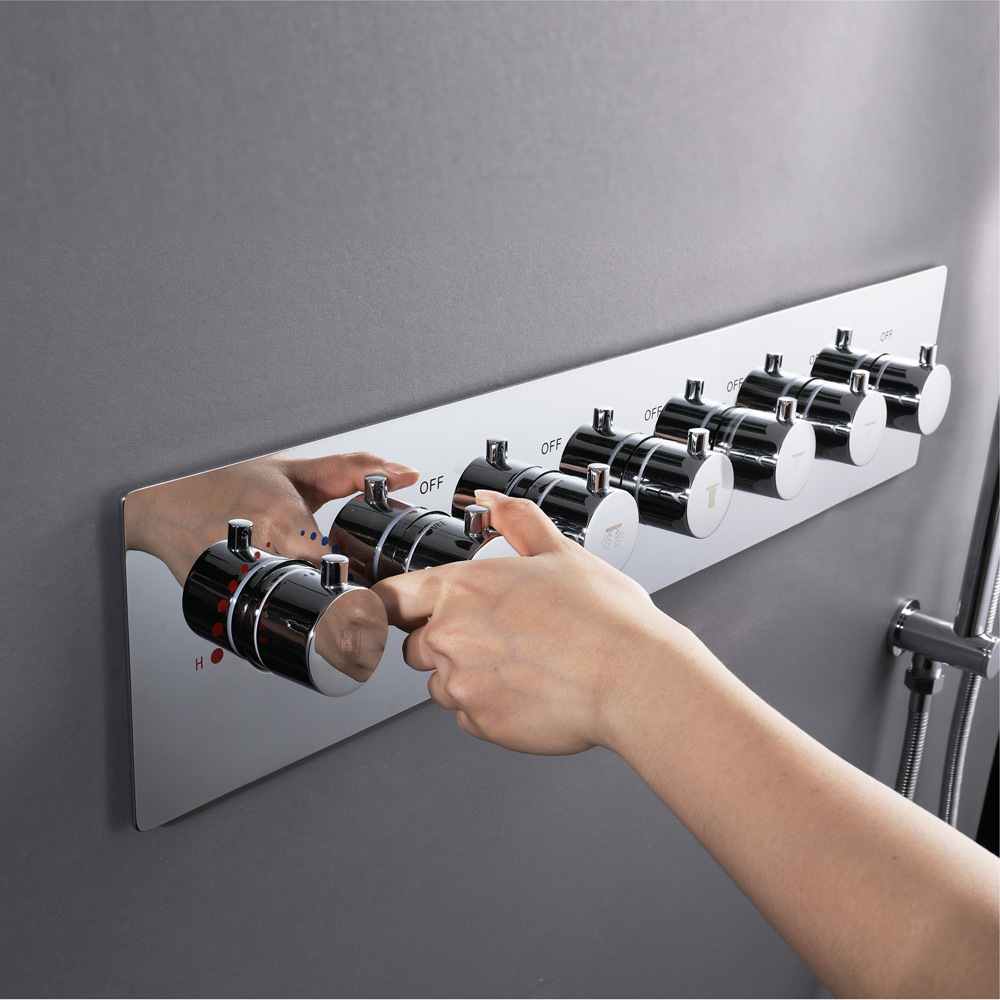

One-Way Through Six-Way Shower Valve Installation
Shower mixer valves are available from single-function through multi-function configurations. The required arrangement depends on the shower functions that need to be controlled.
For example, a basic shower head can use one controlled function. A system incorporating rainfall, waterfall, mist, handheld showering and body sprays requires additional mixer or diverter functions.
The source notes that several body sprays are generally grouped together on one line so they operate as one controlled function.
| Valve Configuration | Typical Control Concept | Example Application |
|---|---|---|
| Single Function | One controlled water outlet | Basic shower head |
| Two Functions | Two controlled outlet functions | Shower head + handheld shower |
| Multi-Function | Several separately controlled water functions | Rainfall + waterfall + handheld |
| Four-Way and Higher | Expanded multifunction outlet management | Overhead functions + handheld + body sprays |
| Up to Six-Way | Complex multifunction shower configuration | Multiple overhead modes and secondary outlets |
Thermostatic Shower Valve Operation
The source describes thermostatic shower valves as being intended to maintain water temperature at a safer and more consistent level when supply conditions fluctuate.
It explains that the valve uses an internal diaphragm or piston mechanism that reacts to pressure changes in the hot and cold supplies and balances those inputs. The source states that such valves may maintain temperature within approximately plus or minus 2 to 3°F.
Because the valve body is installed within the wall, the visible shower area can remain comparatively clean while the mixing components are concealed behind the finished surface.

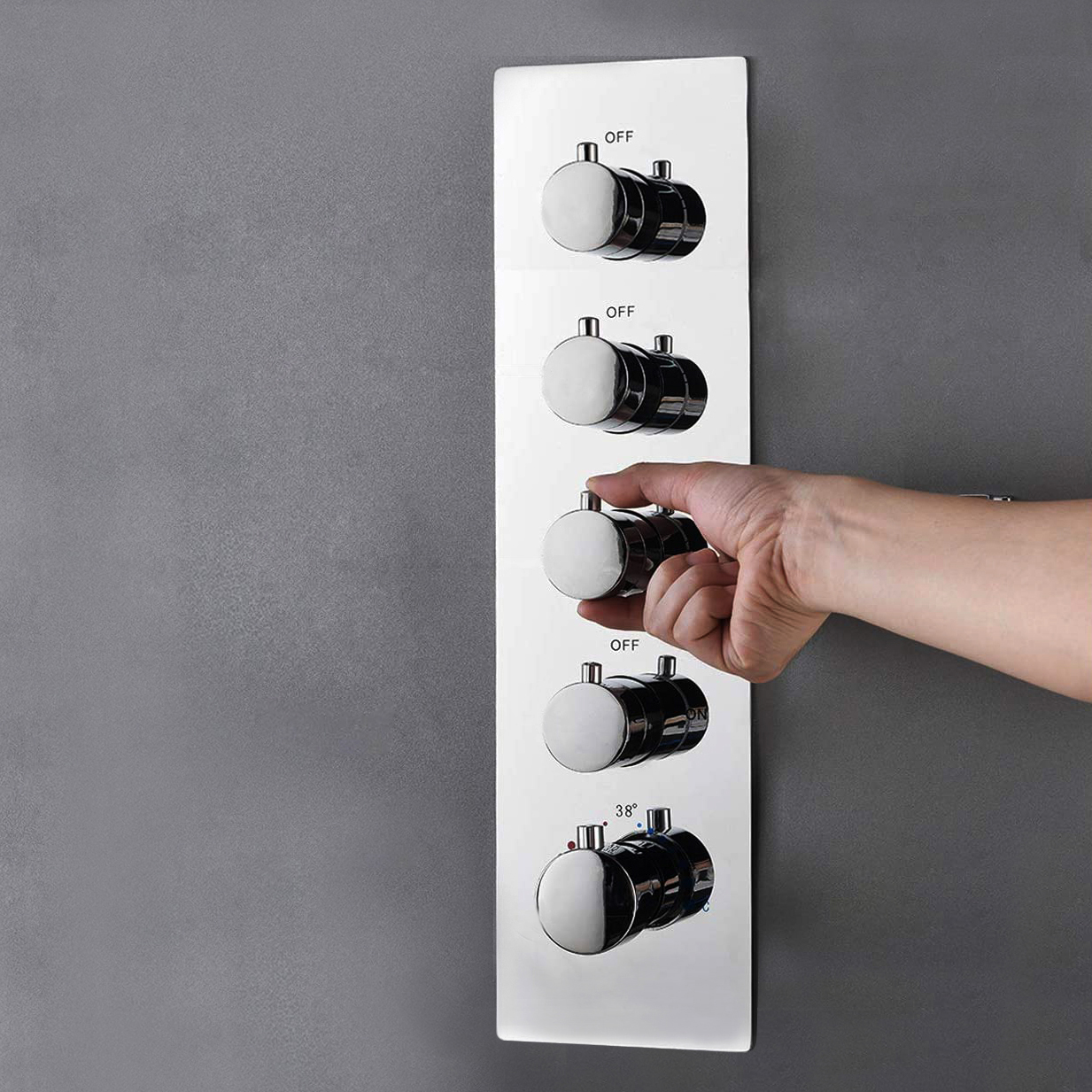

Four-Way Shower Mixer Valve Installation
Shower Mixer Valve Configurations
The original page includes the following BathSelect mixer-valve products as examples of different control formats, finishes and installation styles.
Bravat Solid Brass Wall-Mount Mixer
Wall-mounted electro-thermal shower mixer configuration.
View Mixer →
Bravat Two-Way Mixer Valve
Oil-rubbed bronze hot-and-cold shower mixer control.
View Mixer →
Bravat Brushed Gold Thermostatic Mixer
Dual-handle wall-mounted thermostatic mixer configuration.
View Mixer →
Bravat Gold Crystal-Handle Mixer
Decorative three-handle thermostatic shower mixer shown in gold, with additional finish options referenced by the original page.
View Mixer →
Single-Button Black Shower Valve
Brass single-button shower-control configuration in black.
View Valve →
Two-Function Concealed Mixer
Concealed black brass shower mixer for two controlled functions.
View Mixer →BathSelect Shower Mixer Options
BathSelect’s source content references several mixer formats, including thermostatic shower mixer valves , concealed mixers, multi-function controls, digital thermostatic valves and bathroom shower mixers.
The broader BathSelect shower mixer collection includes different layouts, finishes and installation configurations intended to coordinate with different bathroom and shower-system designs.
Temperature Safety Features
The source states that BathSelect thermostatic digital shower mixers can include built-in safety functions intended to help prevent scalding, including automatic shut-off if water temperature becomes excessively hot.
Installing a Shower Mixer Valve
Whether the bathroom is being remodeled or built new, the hot and cold water lines feed into the shower valve installed within the wall. The valve mixes those supplies before delivering water to the shower system.
The original page provides the following plumbing recommendations:
- Do not pipe off the ring main.
- An independent water supply for both hot and cold is required.
- Long pipe runs can create frictional pressure loss.
- The source recommends primary water-supply piping to the valve of at least 3/4 inch.
- Where more than one valve is installed, the source recommends a 1-inch main water supply reducing to 3/4 inch within 24 inches of each valve, while maintaining adequate hot and cold supply.
Shower Valves, Systems & Installation Resources
A four-way shower valve can coordinate multiple outlets such as rainfall, waterfall, handheld and body-spray functions. More complex systems also require careful rough-in coordination, adequate flow capacity and accessible servicing where the valve is concealed.
Before installation, confirm the valve diagram, permitted outlet combinations, hot-and-cold supply capacity, finished-wall depth and drainage. The original resource also recommends pressure-testing the system before the wall is closed.
Match the Valve Configuration to the Shower Functions
A shower mixer valve should be selected around the number of water functions, the desired temperature-control method and the plumbing configuration rather than by visible trim alone.
For multifunction installations, the valve arrangement, water supplies, outlet assignments and concealed service access should be coordinated before the wall and waterproofing system are completed.
Plan a 4-Way Shower Valve Before Rough-In
Four-way shower valves coordinate multiple outlets through one thermostatic control assembly. Before installation, verify hot and cold supply routing, outlet assignments, valve depth, pressure and flow capacity, diverter orientation, G1/2 connections, waterproofing, and future service access for dependable multi-function shower performance.
